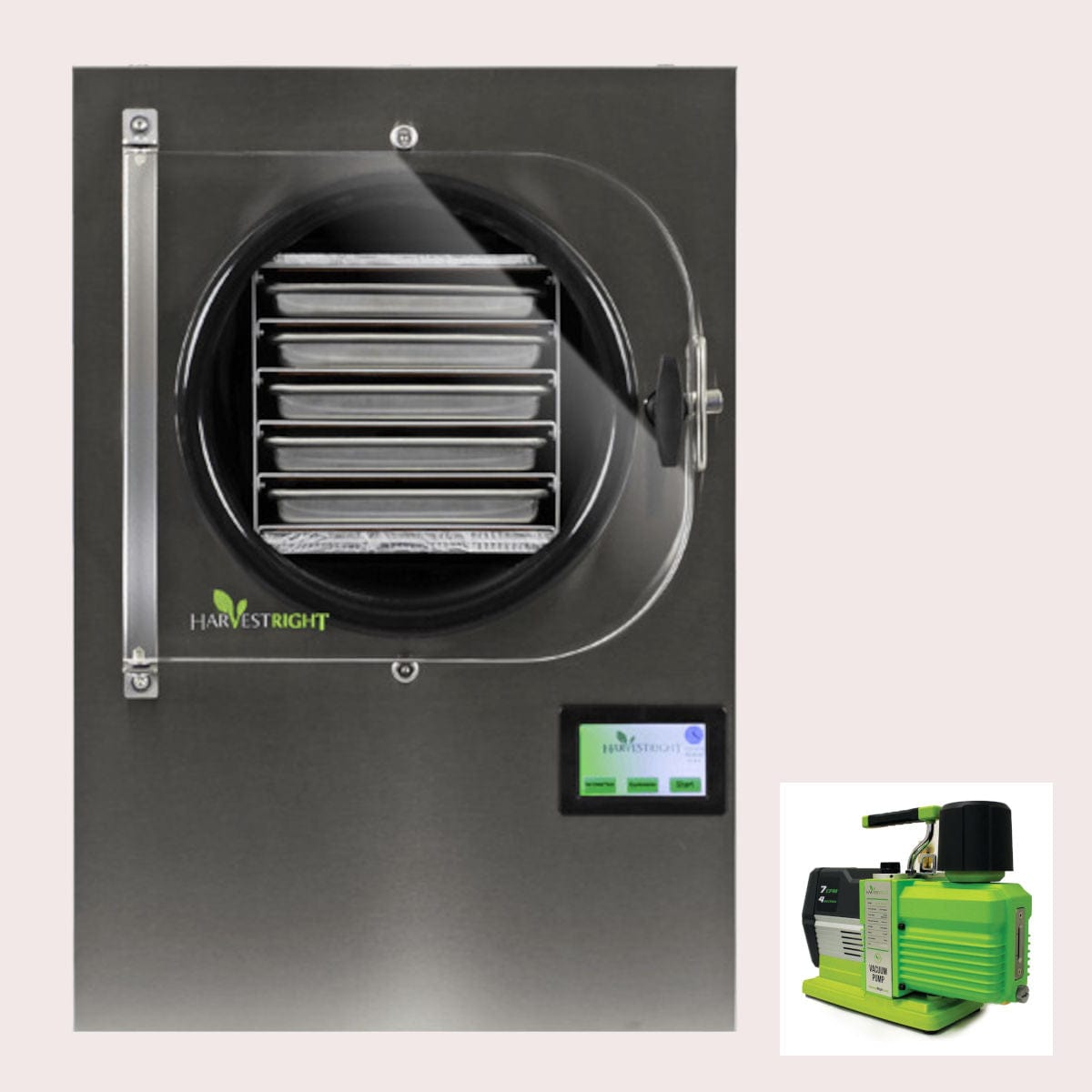

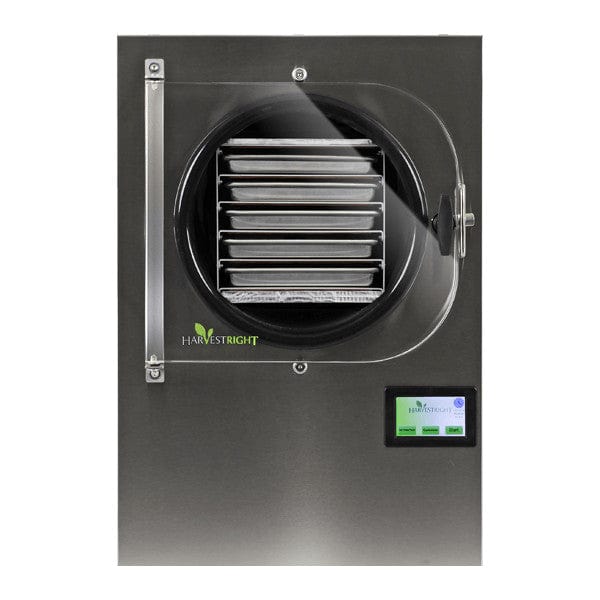

Harvest Right | Pharmaceutical Freeze Dryer Small (5 Trays) with Premier Oil Vacuum Pump

DESCRIPTION

Patented technology keeps the product fresh, and preserves the potency, color, shape and nutrition of any organic material. Perfect for freeze drying herbs, oils, medicines, remedies, pharmaceuticals, and compounds.

Key Features & Benefits

• The freeze dryer has built-in intelligence. It automatically and perfectly manages the freeze drying process
• The ideal vacuum pressure and drying temperature is maintained for each material – preserves freshness and potency
• 3.75 square feet of tray space

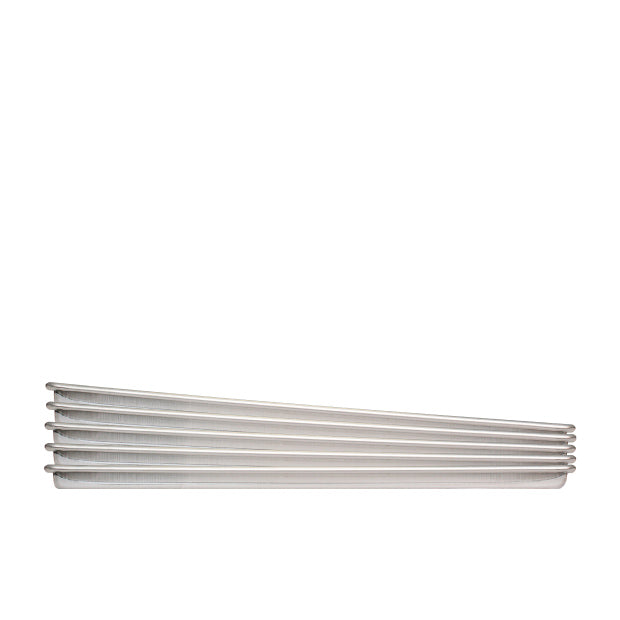

• Shelving unit holds 5 trays (each tray 7.75″ W x 14″ L x 0.75″ H)
• 3 liters of ice capacity

Warranty

3 year limited warranty

Dimensions

Overall product dimensions: 16.5″ W x 18.5″ D x 25″ H
Perfect for a countertop, cart or table.

Power

110 volt outlet.

Shipping Info

• The small freeze dryer ships in one package with a total weight of 139 lbs.
• Item will be delivered to physical addresses, no PO boxes, they just don’t fit.
• One freeze dryer package: 26″W x 36″D x 41″H.

Maintenance

Simply filter and replace oil. It takes one or two minutes.

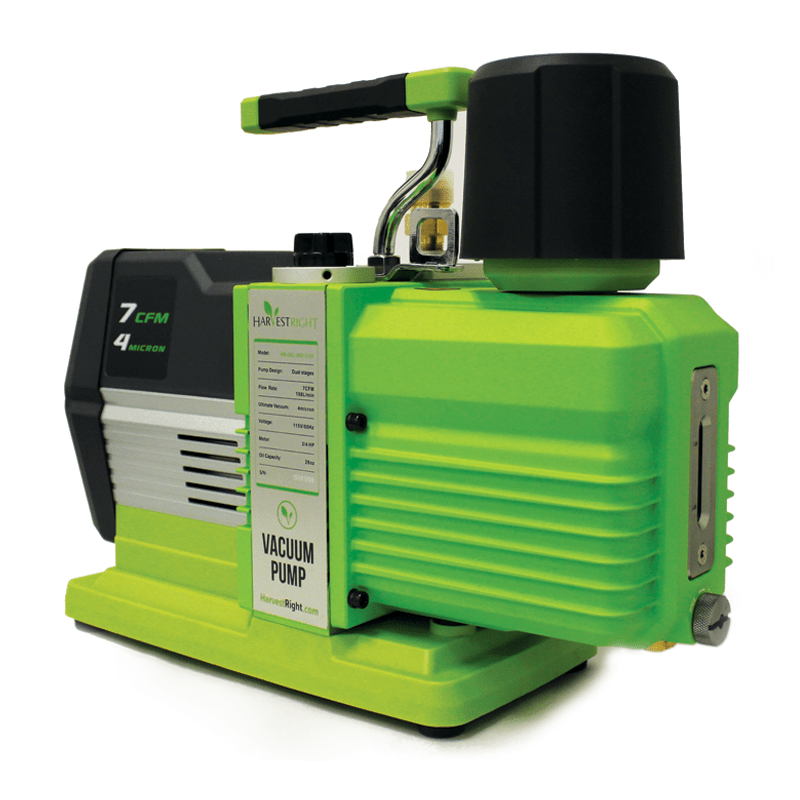

Industrial Grade Pump

• High quality, super high vacuum
• High evacuation performance
• Light, fast, energy efficient

Technical Specifications

• CFM: 7
• Motor: ¾ HP
• Voltage: Standard, 115v, 60Hz
• Intake Port: 1 1/16 JIC flare
• Dimensions: 16.3" x 6" x 12.1"
• Weight: 32lbs
• Vacuum Pressure: Not affected by warm or cold conditions. Pulls the same deep vacuum, even when room temperature is warm or cold.
• Noise: 52 decibels

Product Comparison

Industrial Oil Pump vs Standard Oil Pump

Oil Changes

This new Industrial Pump rarely needs to have the oil changed or filtered. The pump has a gas ballast feature that makes it so water does not stay in the oil. Because of this, the oil in the pump will be pristine and clear, even after 30 or more batches. You simply won’t need to change the oil until you have run 25 to 40 batches. Whereas, the oil in the standard vacuum pump needs to be changed and filtered every 4 or 5 batches (when using the new 3/8 inch vacuum hose).

Vacuum Pressure

Under cold and hot conditions the Industrial Pump will pull a deeper vacuum than the Standard Pump. Under cold conditions, the difference is .05 Pascal for the Industrial Pump and .08 Pascal for the Standard Pump. Whereas, under warm conditions, the difference is much greater: .05 Pascal for the Industrial Pump and 2.05 Pascal for the Standard Pump.

Hence, the Industrial Pump is especially not affected by warm, ambient conditions. When temperatures rise, it will pull a vacuum far better than the Standard Pump. The Industrial Pump is just not affected by outside heat. It pulls the same deep vacuum even when it is in a warm environment.

Noise

The Industrial Pump is substantially quieter than the Standard Pump, 52 decibels versus 64 decibels. The Industrial Pump at 52 decibels is about the same as a refrigerator.

Oil Mist Filter

Both pumps come with an oil mist filter. However, the Industrial Pump’s oil mist filter allows for no oil spray at all and it will last much longer.

Power Use

The Industrial Pump uses less power than the Standard Pump (187 watts versus 218 watts).

Amperage

Under hot conditions at ultimate vacuum pressure, the Standard Pump pulls 2.1 amps while the Industrial Pump only pulls 1.7 amps. Hence, the Industrial Pump is more efficient.

Weight

The Industrial Pump is easier to move around as it weighs 5 pounds less than the Standard Pump (32 lbs. versus 37 lbs.)

Life

The Industrial Pump is more durable and will last longer than the Standard Pump.

INFORMATION VIDEOS

Warranty

3 year limited warranty
