Illumitex | Eclipse GEN2 N Bar LED Grow Light (Used)

DESCRIPTION

Add grow lights to your greenhouse to provide your plants more hours of photosynthesis for maximum growth. This is especially beneficial during the winter season when the daylight hours are shorter.

Note: Discontinued/Off-lease/Used

Although this specific item has been discontinued at Illumitex, we were able to obtain a large quantity of returned units from a leasing company which specializes in supplying the pot industry. These have been used less than 6 months - they come with the full warranty. They might be dusty but they function normally and are in good condition. We are offering these at a greatly reduced price as long as inventory lasts. Normally these retail new for over $400 each.

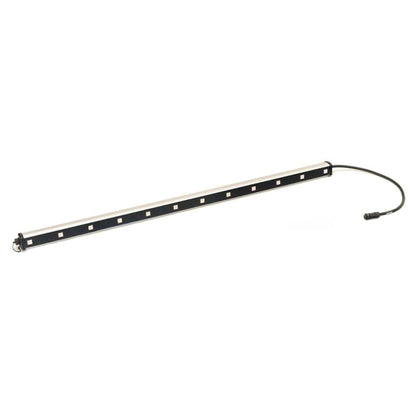

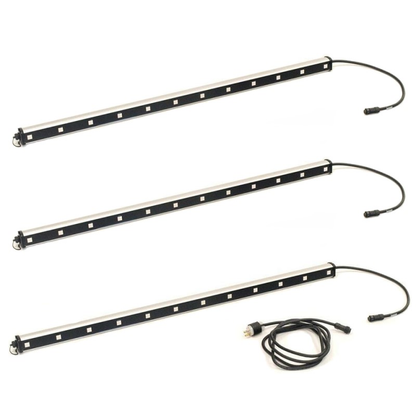

The Illumitex Eclipse™ Gen2 N Bar LED Grow Light is ideal for vertical farm applications, and is also suitable for a wide range of other horticulture applications including: greenhouses, growth chambers, and tissue culture laboratories. The Eclipse Gen2 single bar is designed to deliver high levels of photosynthetic photon flux (PPF) values in the F3 spectrum with unsurpassed light uniformity, all within a slim and water-proof design. For easy installation, Eclipse Gen2 fixtures can be daisy-chained together in runs of up to 15 fixtures. Fixtures are supplied with spring clips for surface mount or unistrut installations.

Mechanical Construction

Single, 46 inch anodized aluminum extrusions provide thermal management and housing for drivers and wiring. You can buy the light bar with a 9' power cord or with only the short pigtail for daisy chaining. High temperature, molded-silicone gaskets and injection-molded polymer end caps provide IP66- rated ingress protection from dust and moisture. 5-conductor cables and water tight, locking connectors provide power and dimming from bar to bar. Each bar includes pigtail and male connector on one end and a female connector on opposite end. Maximum bar to bar spacing is 18 inches on centers.

Electrical Specifications

Each Eclipse N light fixture includes an internal dimmable driver. Input voltage is 120-277VAc and 50-60Hz. 0-10V dimming is standard.

LEDs

The 50° beam angle utilizes Illumitex’s patented Digital Distribution technology ensuring that the maximum light intensity is delivered directly to the crop canopy at higher mounting heights (12 to 36 inches).

Weight

5.4 lbs

Finish

Clear anodized extrusions with black molded gaskets and end caps.

Power Consumption

65 watts for 12 LED’s in F3 spectrum (consult factory for wattage of other
spectrums, 75 Watts max)

Testing & Compliance

• IP66 ingress protection rating
• RoHS compliant
• ETL listing for wet location
• 5-year warranty
• 50,000 hour life

Note: Although this specific item has been discontinued at Illumitex, we were able to obtain a large quantity of returned units from a leasing company which specializes in supplying the pot industry. These have been used less than 6 months - they come with the full warranty. They might be dusty but they function normally and are in good condition. We are offering these at a greatly reduced price as long as inventory lasts. Normally these retail new for over $400 each.

SPECTRA

GENERAL PURPOSE, HIGH EFFICIENCY

F1 spectrum is suitable throughout the plant growth cycle and offers the highest photon yield efficacy of the available spectra. F1 is recommended for applications with a tight energy budget where visual plant assessment is not a priority.

BEST FOR GERMINATION THROUGH FLOWERING

The F3 spectrum is the workhorse and most popular spectrum from Illumitex. It produces the fastest germination and drives the best vegetative and flowering results among all of the spectra options. In addition to the blue and red wavelengths, the F3 spectrum contains a small amount of green which is beneficial for the quality assessment of plants. The F3 spectrum is recommended for use in growth chambers as well as controlled environment agriculture operations of any size.

BEST FOR HUMAN VISUALIZATION

Inspired by the work of NASA scientists, X5 spectrum delivers the highest level of light within the green band of the PAR spectral range, thus providing the best spectrum option for plant quality assessment.

BEST FOR VEGETATIVE GROWTH

F6 spectrum provides an enhancement in the 400 to 499nm region
ensuring the fastest vegetative growth results. The increased blue
content reduces overall plant height and improves plant appearance and
space utilization.

Warranty

5 year warranty.
