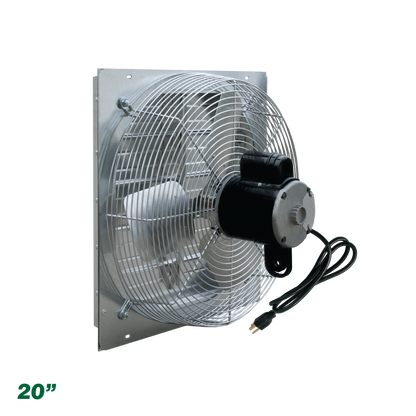

Exaco | Exhaust Fan with Shutter

DESCRIPTION

The Exhaust Fan with Shutter is a durable agriculture grade exhaust fan perfect for barn and building peaks, greenhouses, warehouses, and more. Shutter Fans come pre-wired with a cord and 3-prong plug for "No Electrician Needed" installation. Fans ship fully assembled out of the box so you're up and running in no time!

Exhaust fans are usually positioned in a high location in the back wall.

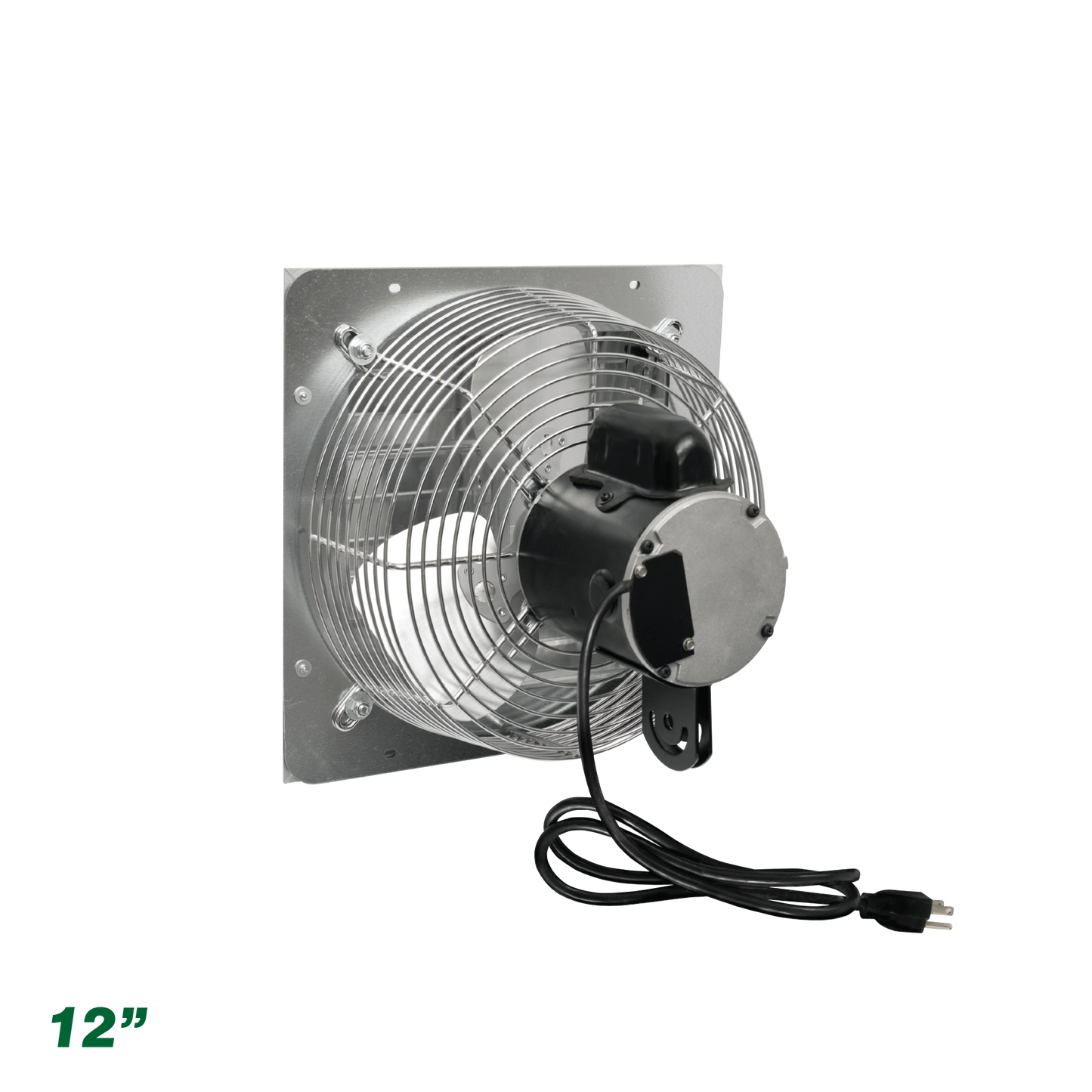

12" is recommended for RIGA 2, 3, 4, Junior Victorians, Victorian VI 23-24 greenhouses

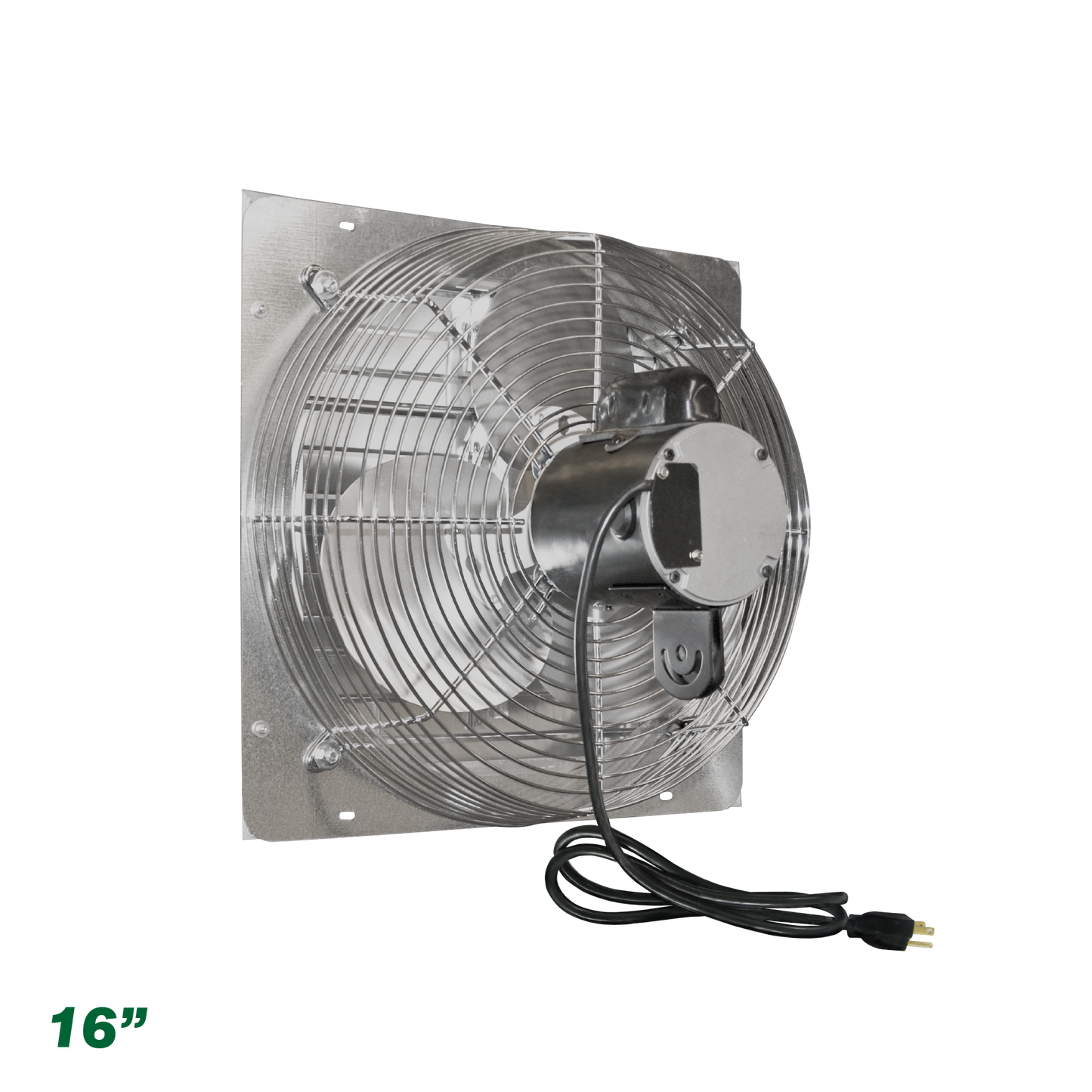

16" is recommended for RIGA 5, Victorian VI 34-46 greenhouses
20" is recommended for all RIGA XL greenhouses

FEATURES

• 18-gauge heavy-duty galvanized housing
• Sealed and protected capacitor
• Rough Opening:
  12" - 12.25"x12.25"
  16" - 16.25" x 16.25"
  20" - 20.25" x 20.25"
• Power:
  Voltage: 115 Vac 60 Hz,
  Amps NP: 1.42A
• Smooth and quiet operation
• Comes fully assembled out of the box
• 3-prong plug and pre-wired for 115 Volts. No electrician needed for install!
• High-efficiency aluminum shutters with tie bar to reduce shutter flapping and opening on windy days
• This industrial exhaust fan is perfect for garages and other work spaces where you want a little airflow
• Fan Guard:
  Meets OSHA 1910.212(a)(5) requirements to mount at any height on inlet side of fan (shutter side should be 7' above ground)
  Strong
  Coated steel for easy cleaning
• Fan Prop:
  Balanced
  3-bladed
  Corrosion-resistant coated steel hub

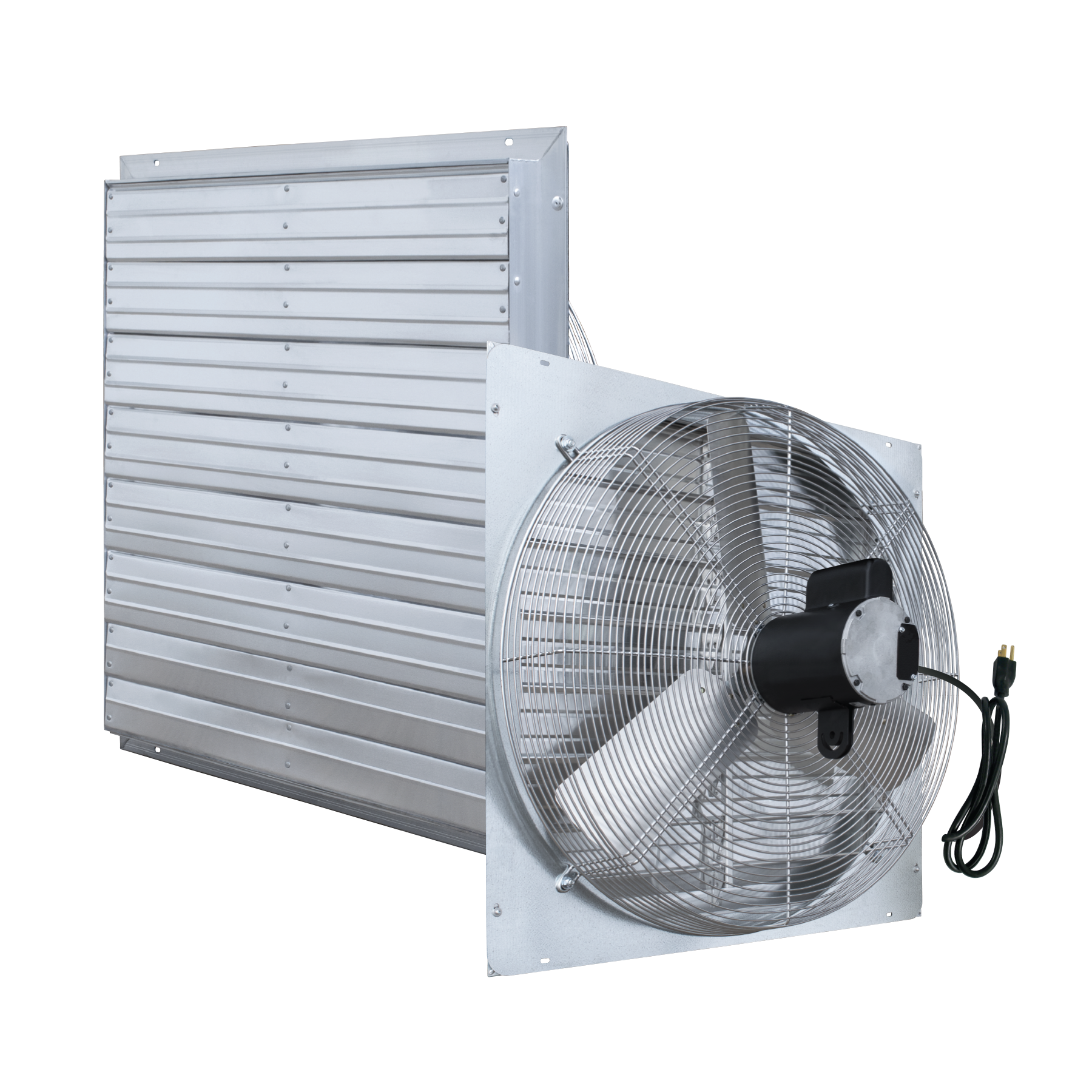

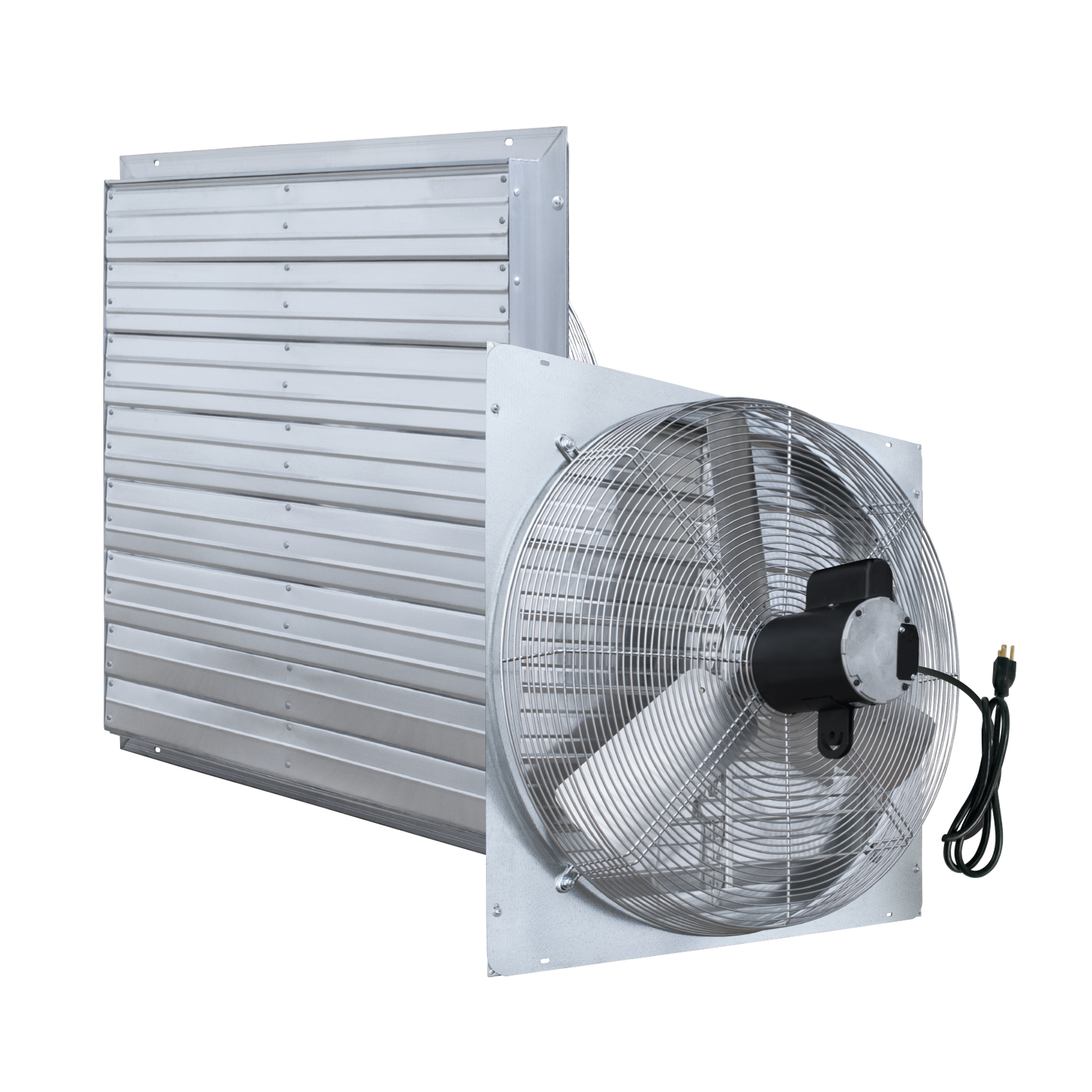

• Shutter:
  High efficiency aluminum
  Fortifying ribs for added strength
  Tie bar to reduce shutter flapping and opening on windy days
• Motor:
  High efficiency
  Fully enclosed
  Maintenance-free
  Direct drive
• Optional Thermostat and motorized air intake vent can be ordered
• Financing Available

Installation Instructions

Exhaust Fan with Shutter Installation Instructions
