Janssens | Modern Pent Roof Glass Greenhouse Kit With 4mm Tempered Glass Glazing (Custom)

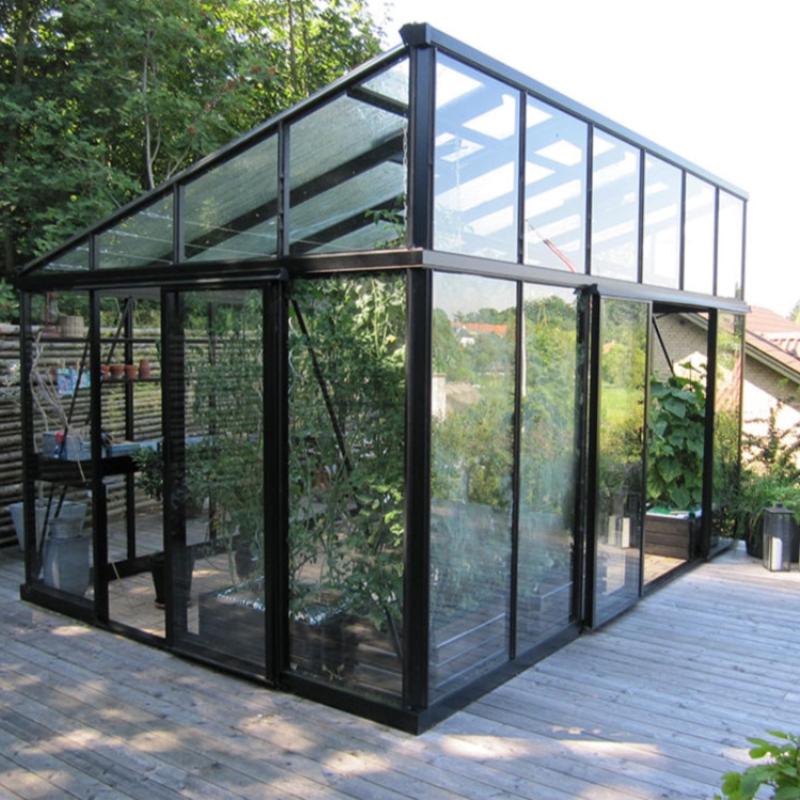

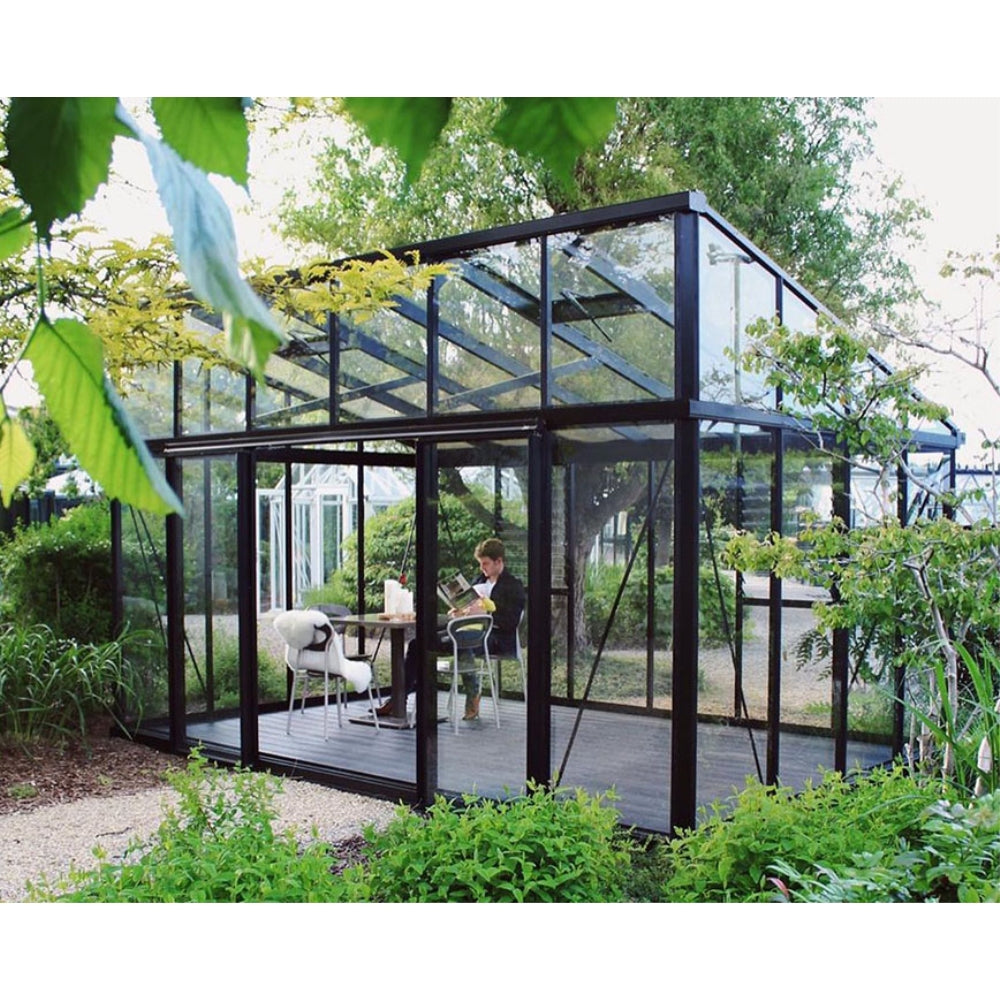

The Janssens Modern Pent Roof Glass Greenhouse Kit features a sleek sloping roof design that matches the modern house style. Use this greenhouse as a perfect year round growing environment for your herbs, fruits, or veggies. Or use it as a relaxing lean to sunroom, a whimsical standalone backyard lounge, a cozy jacuzzi house to extend your living space beyond your house.

The Janssens Modern Pent Roof Glass Greenhouse comes standard with:

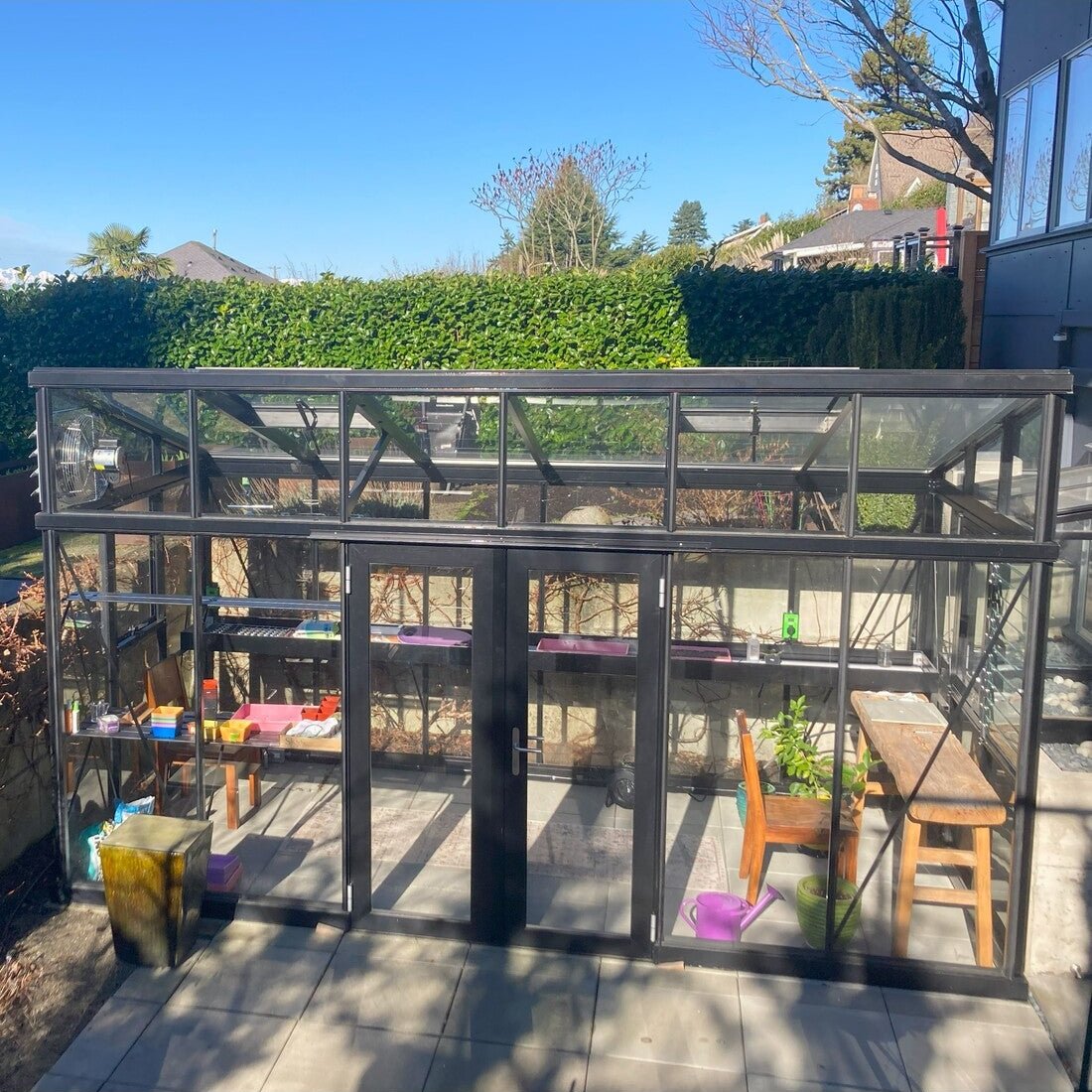

• 1 set of double hinged doors with closers

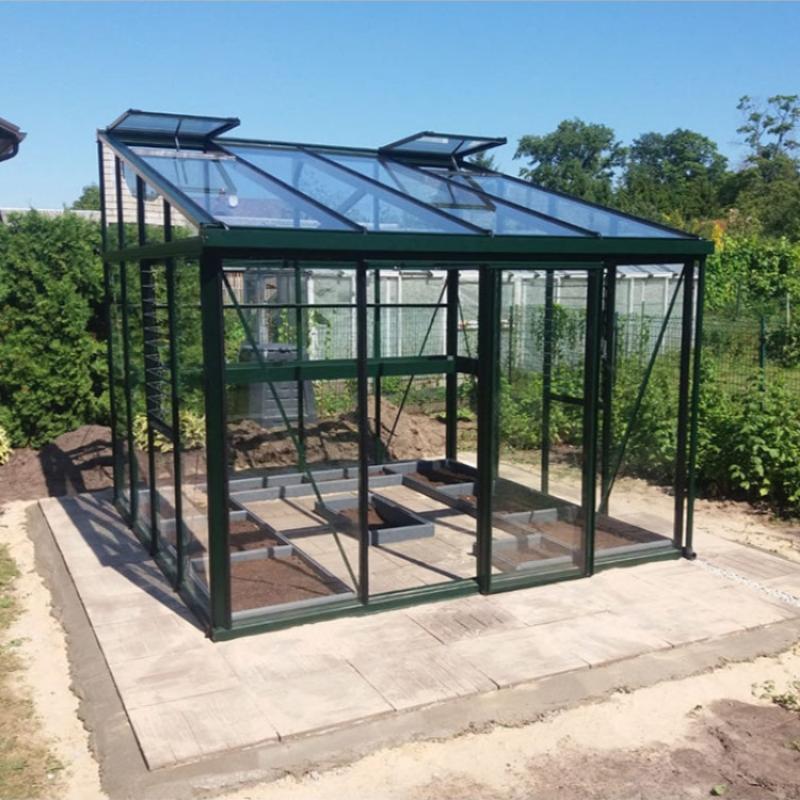

• 3 roof vents.  All with an automatic heat-operated openers (no electricity needed)

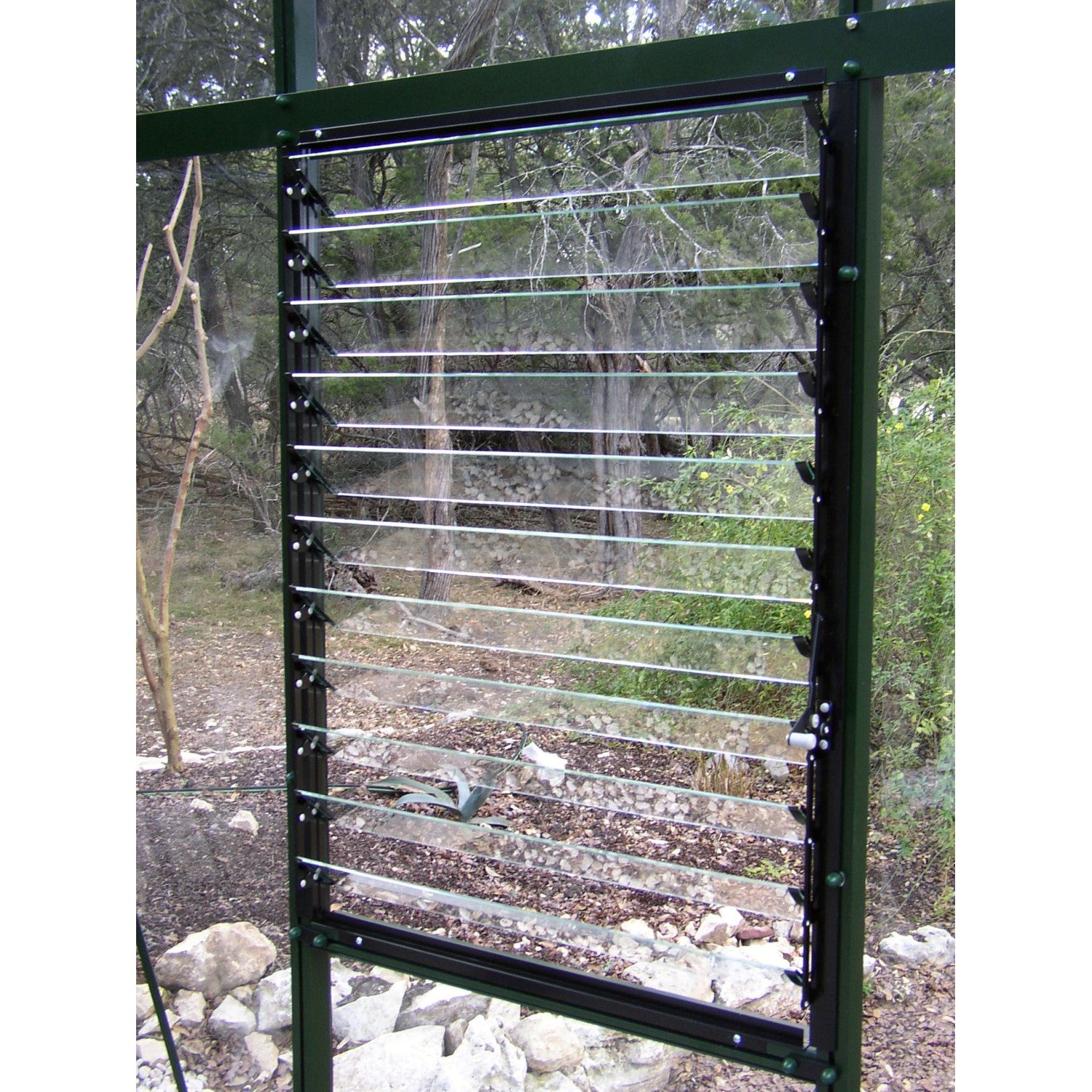

• 2 louvered windows on M34/36.  1 louvered window on M23.  Louvered windows come with:
  • Automatic heat-operated openers (no electricity needed)
  • Clear Lexan winter cover for the cold season
• 2 push out / tilt windows

Click Here to see our Retractable Shade Cloth Curtains for these models.

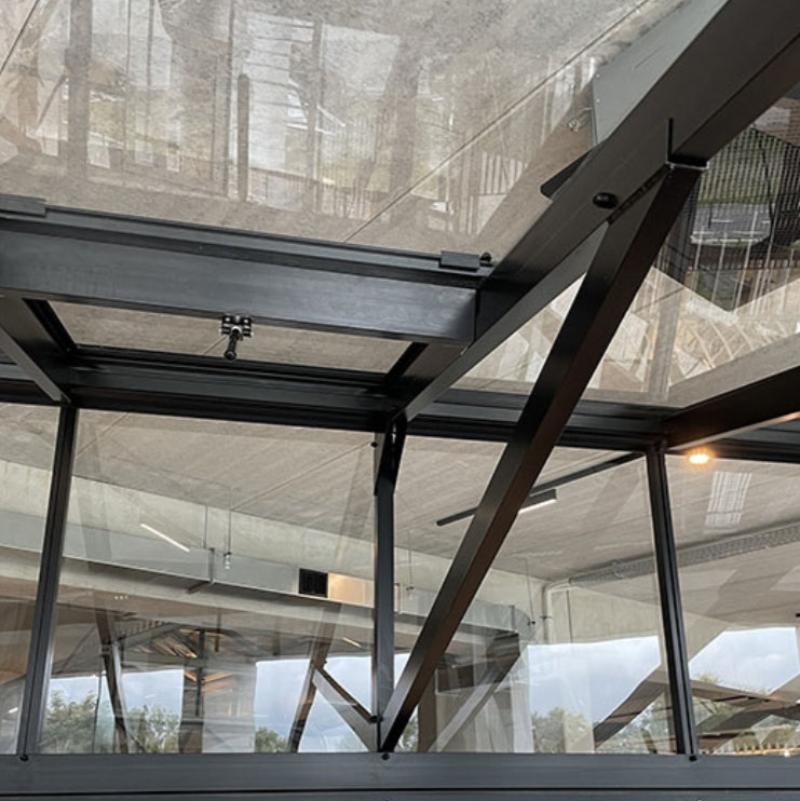

To support the longer roof glass panels of this unique glass greenhouse design, the aluminum roof rafter/profiles are twice as thick as our normal profiles. All standard units also include additional triangle cross supports.  The strong frame combines with the 4mm tempered safety glass construction make for a very durable, long lasting structure with little maintenance.  Additional optional triangle supports can be added to further increase the roof strength.

NOTE: M23 roof glass is one long piece per panel, M34/M36 units will have two overlapping panes on the roof, rather than one long piece.  Assembly and delivery is easier and safer due to a more manageable size and weight.

This beautiful greenhouse is highly customizable by special order - size, glazing material, frame color, roof and wall features such as doors, panels, and windows. Call us at 888-648-5333 to arrange a free design session to configure your dream version!

Black is standard, available in other colors by custom order (at extra cost):

• Basic colors: Black, Pure White, Fir Green
• Custom colors: Bronze, Anthracite (Dark Grey), and hundreds of other RAL colors.  Here is an overview of the RAL color system.

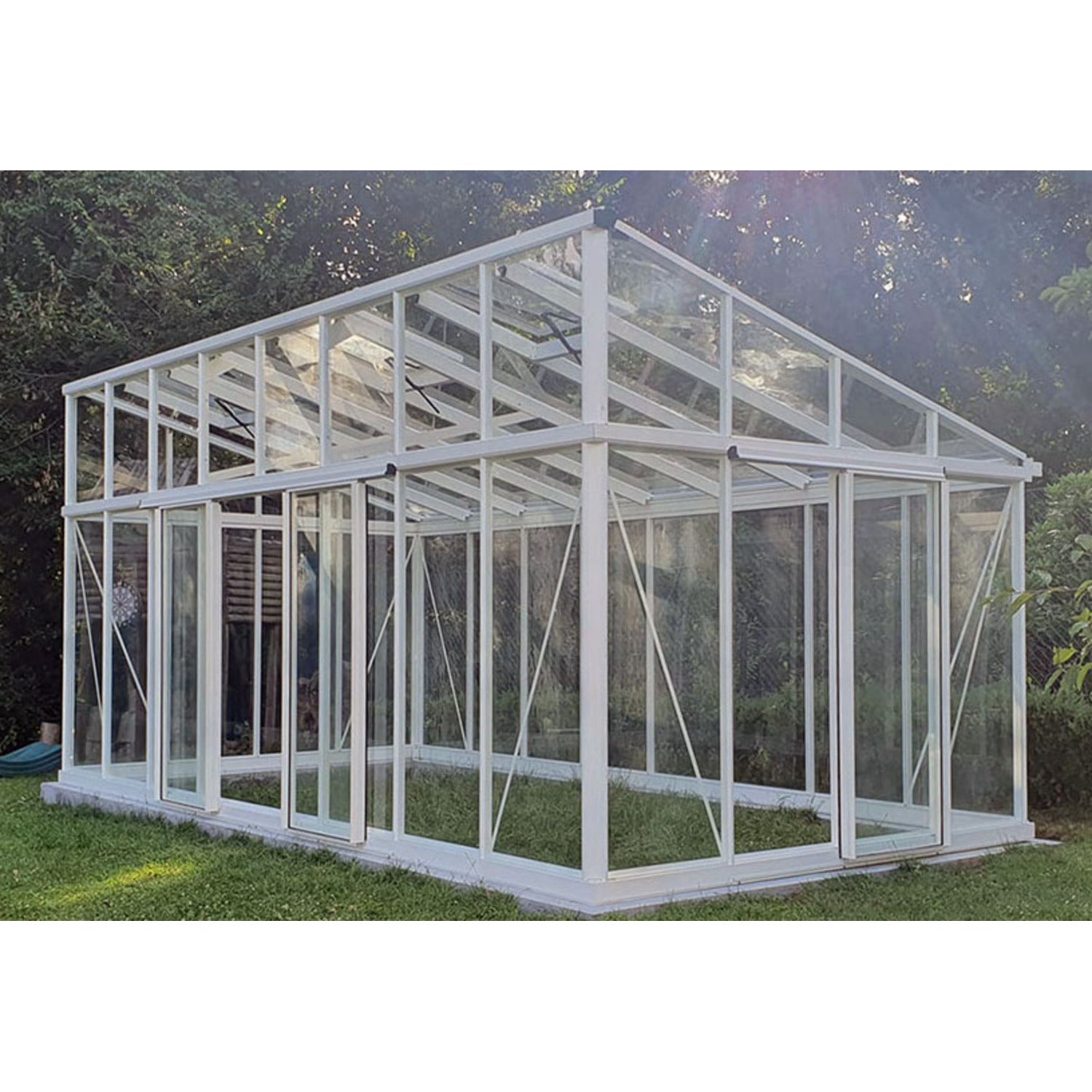

8x10 ft (M23), 10x15 ft (M34), and 10x20 ft (M36) are the standard sizes, other sizes are available by custom order (at extra cost and longer shipping turnaround time):

• 8x12.5 ft
• 8x15 ft
• 8x17.5 ft
• 8x20 ft
• 10x10 ft
• 10x12.5 ft
• 10x17.5 ft

Narrow glass panels (half the width of the standard panels) also available by custom order.

Ground mount is standard.  You can also select that you are building the greenhouse on a 16" or 24" wall (see exact dimensions in the manual) - the glass of the greenhouse wall will be shorter to maintain the same gutter height.  The door will extend to the grade level in a cutout in your wall.  You can also special order for an 8" wall - call 888-648-5333.

If you want to build the greenhouse on top of your wall with the normal full height glass to raise the whole greenhouse up), you will need a drop door kit to lower the door to the grade level, and you will need to provide your own piece of tempered glass to fit above the dropped door.  Be sure to let us know your wall height when ordering this way, so we can be sure the drop door kit is long enough.

A note about special orders: the pricing given on this page for special sizes and colors is an initial estimate for your information and comparison, all special and custom orders will require a price quote.  Your custom order will be built for you in the Janssens factory in Lier, Belgium, and your estimated arrival for your unique build will typically be 14-16 weeks, depending on the factory queue and the shipping pipeline, and other factors beyond our control.  Call us at 888-648-5333 or email info@MyGreenhouseStore.com for more information.

If you prefer to have a professional crew assemble and install the greenhouse for you, call 888-648-5333 for some recommendations from our list of experienced builders.

FEATURES

• Color: Black. Other colors available by custom order - call 888-648-5333 to discuss.
• Frame Material: Aluminum
• Spacious hobby greenhouse.
• Strong aluminum frame construction with thick gauge

• Aluminum roof rafter/profiles are twice as thick as our normal profiles
• Rafter Inserts can be added to both the center and end roof profiles, for additional strength and rafter stiffness
• Roof and sides are 4mm tempered glass glazing for safety and good insulation value. Glass is secured in place with heavy rubber sealing.
• Optional 10mm twin-wall polycarbonate roof or both the roof and sides (instead of glass) is available as a custom order.
• 1 set of double hinged doors with closers
• 2 roof vents, one with automatic heat-operated opener (no electricity needed), one with manual spindle opener
• 1 louvered window (M23), 2 louvered windows (M34/36) with:
  • automatic heat-operated openers (no electricity needed)
  • clear lexan winter covers
• 2 push out / tilt windows

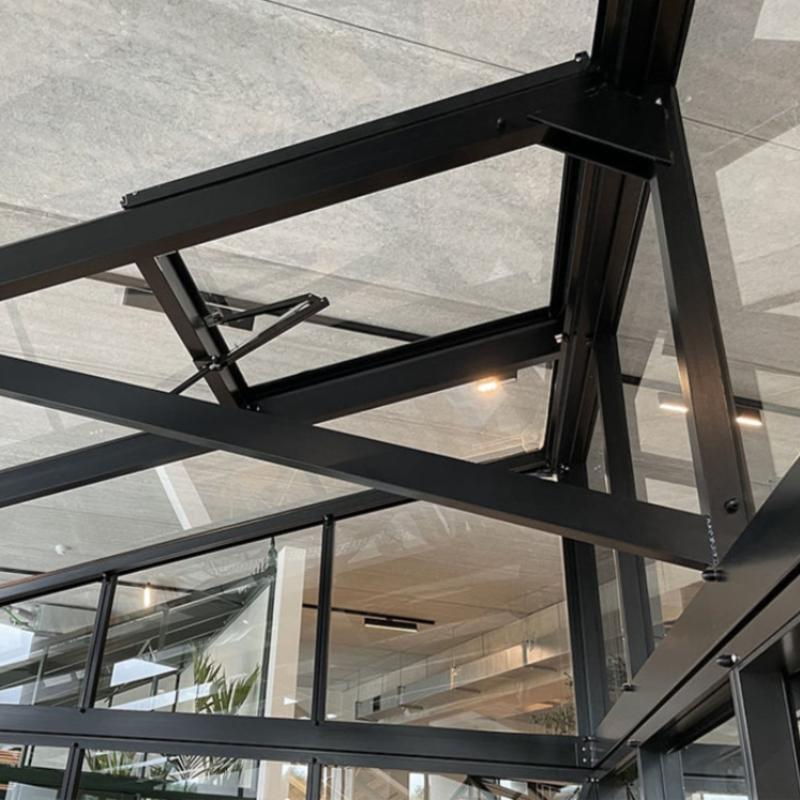

• Heavy triangle supports to support long roof glass:

  • M23 comes with one triangle support
  • M34/M36 come with two triangle supports
  • Additional Triangle Supports are available for extra roof support
• Made in Belgium by Janssens
• 15 Year Limited Warranty
• Financing Available

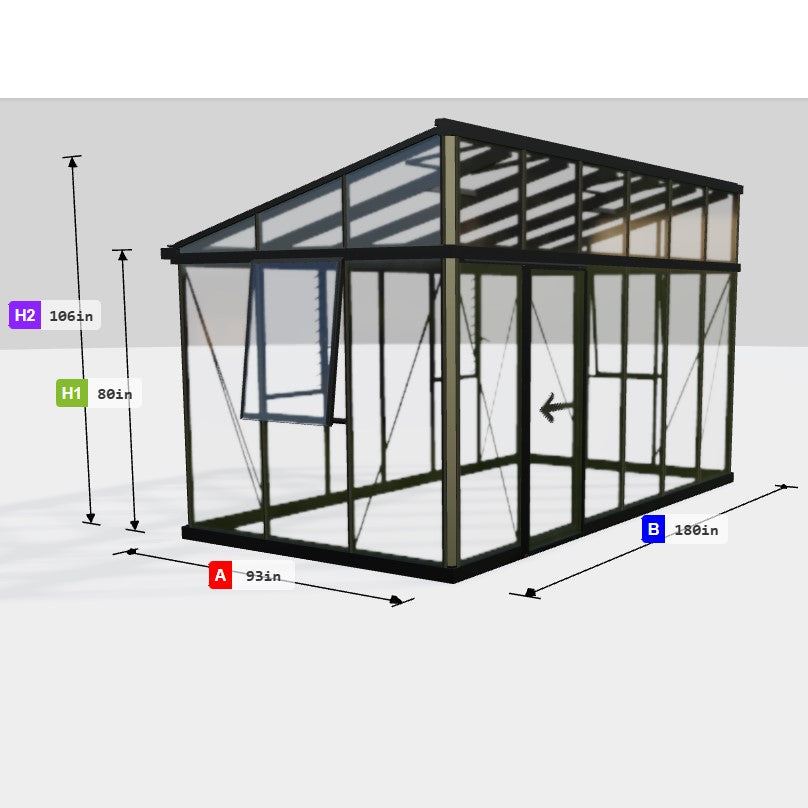

SPECIFICATIONS and Dimensions

• M23: 7ft 9in wide
  • 10ft 2in long (other lengths by custom order)
  • 75 sq ft
  • Sidewall height (low side): 6ft 6in
  • Sidewall height (high side): 8ft 10in
• M34/M36: 10ft 2in wide
  • 15ft (M34) or 19ft 10in (M36) Long (other lengths by custom order)
  • Sidewall height (low side): 6ft 8in
  • Sidewall height (high side): 9ft 7in
• Double hinged door: 56.75x70.5 in
• Frame Material: Aluminum
• Color: Black (other colors by custom order)
• Glazing: 4mm Tempered Glass
• Ships on 1 long pallet of 140 inch and 2 long boxes, total weight of 1,310 lbs. The M23 unit requires a forklift to unload - or customer has to have at least 4 people or more on hand to unload glass panels one by one!  M34/36 doesn't require a forklift due to split roof glass.

INSTALLATION MANUAL

Janssens Modern Glass Greenhouse Installation Manual

WARRANTY

15 Year Limited Warranty
