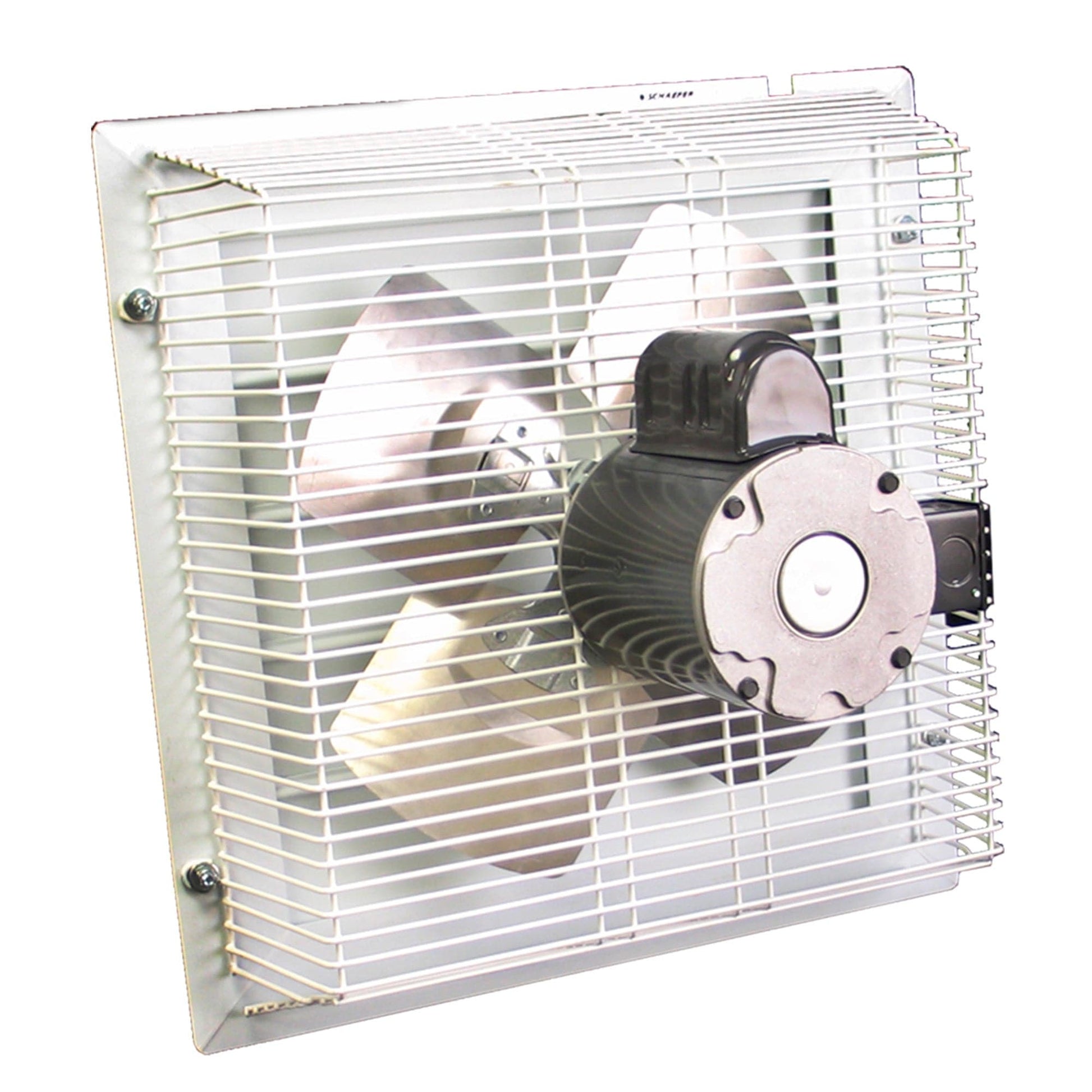

Riverstone | General Purpose Greenhouse and Small Building Exhaust Fan System

The RSI General Purpose Greenhouse & Small Building Electric Powered Exhaust Fan System is designed to fit all structures. The general design is for low profile structures that are in need of air. Our fan is proudly made in the USA and truly designed to fit all structures, but the purchaser needs to be able to retrofit the exhaust system to their own structure since each structure and building materials are different.

Two ways our fan can be mounted, from the outside or from the inside.

If mounting from the outside, a hole in the wall would need to be cut to allow for the fan and interior cage to fit through the wall. Use fasteners (not included) to fasten the fan to the wall by drilling through the framework and caulking the framework to make it watertight. The fan structure is now 100% enclosed in the building and the louvers are on the outside of the structure.

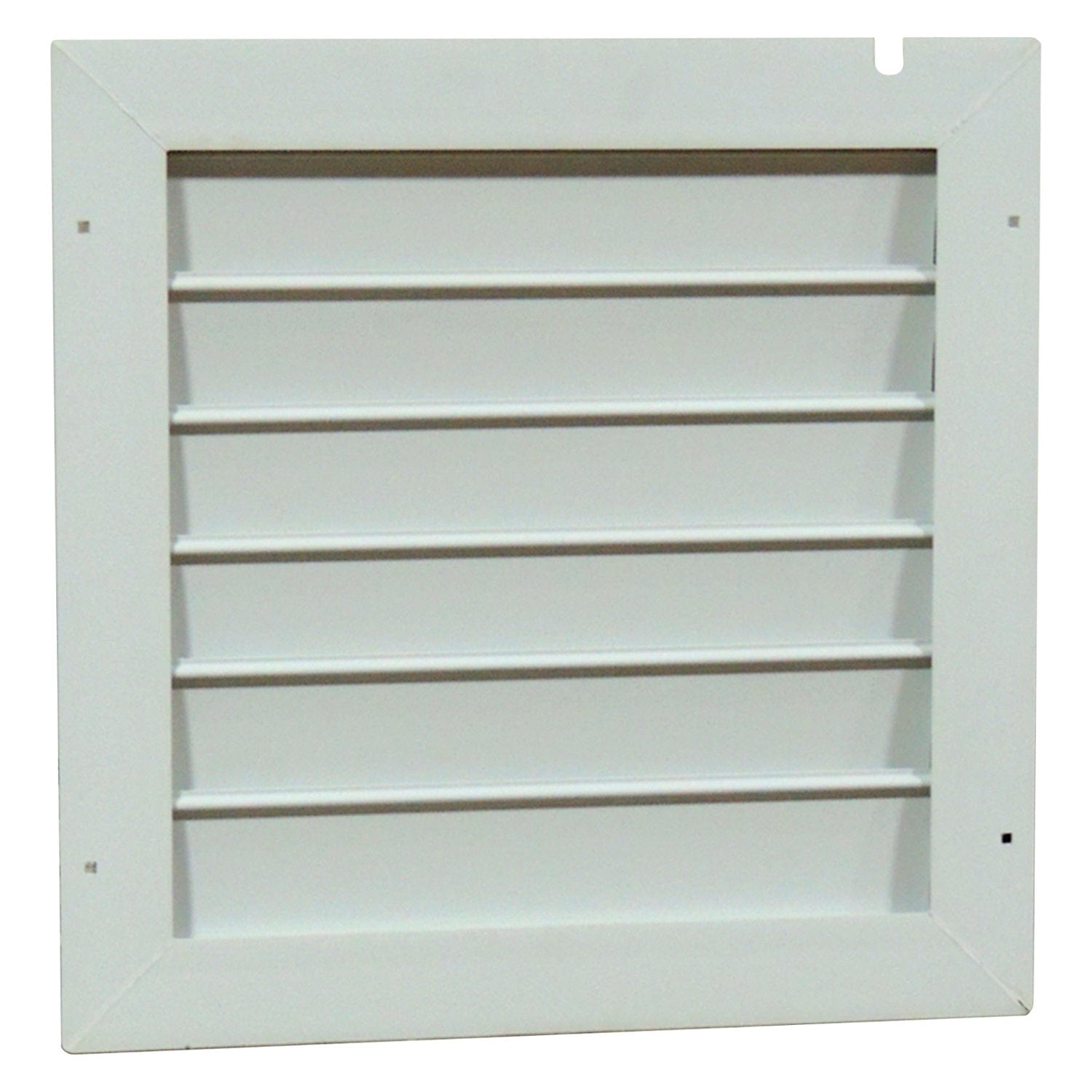

If mounting from the inside, a hole in the wall would need to be cut so that the louvers will be able to open and close freely. This dimension is 16.25 inches x 16 .25inches. Slide it in the opening from the inside out. The exterior lip around the louvers acts to finish off the appearance from the outside. Seal with caulking and fasten the fan to the wall (fasteners not included).

FEATURES

• Low profile is perfect for in areas with limited space
• With build-in shutter, Aluminum blade & durable PVC shutter provides longer life
• Heavy-duty direct drive motor is totally enclosed & maintenance-free
• Fan is mounted flush to exterior wall
• Use in warehouses, hospitals, schools, factories, paint booths, storage facilities, parking garages, greenhouses and gymnasiums
• 16" fan, 1250 CFM (cubic ft/ minute), 1/10 HP 120 Volts
• Auto shut off if tipped
• Dimensions L x W x H (in.): 22 x 22 x 14
• WARRANTY - 1 Year Limited Warranty
